Mini
MN03008
Downlights |Recessed mounted spotlight|3-18w|Square shape

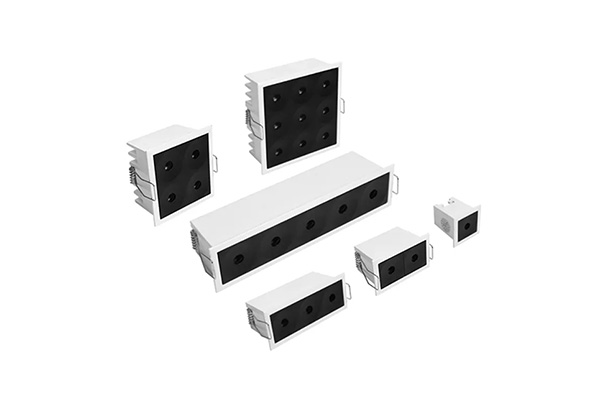

VIVISOMALED MN03008 Series is recessed mounted square spotlights with deep anti-glare. Shading angle greater than 60 degrees, anti-glare angle greater than 30 degrees. The light source is with Bridgelux or Osram COB chips, providing high lumens out up to 100-120lm/W, matching with the top grade control gear like LiFud, Osram, and Philips, a lifetime of up to 50000Hrs.
Online consultation
  • Product list
  • Features
  • Data sheet
  • Photometric data
CODE POWER LUMEN CCT DIMENSION CUTOUT

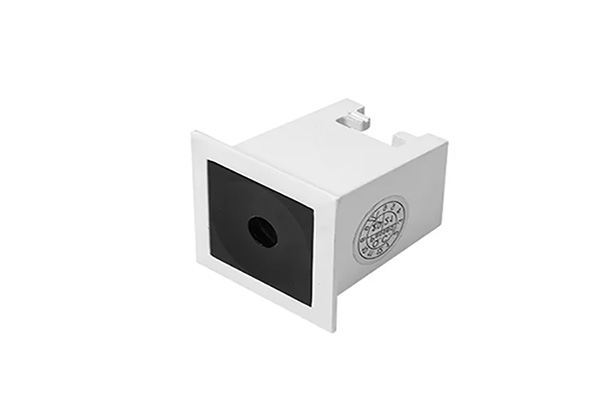

MN03008-3 3W 210 2700K-6000K 40*40*42 35*35
MN03008-5 5W 350 2700K-6000K 69*40*42 65*35
MN03008-8 8W 560 2700K-6000K 100*40*42 95*35
MN03008-10 10W 700 2700K-6000K 70*70*42 65*65

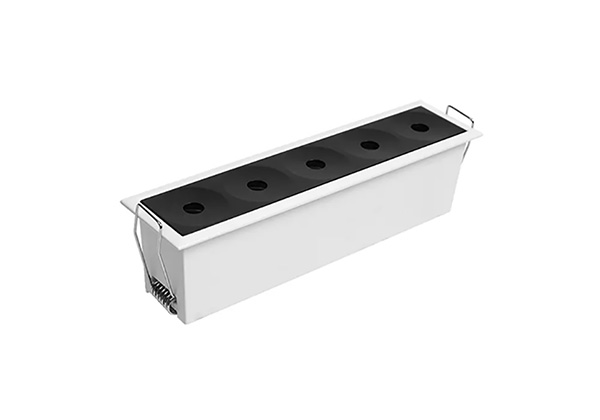

MN03008-12 12W 840 2700K-6000K 160*40*42 155*35

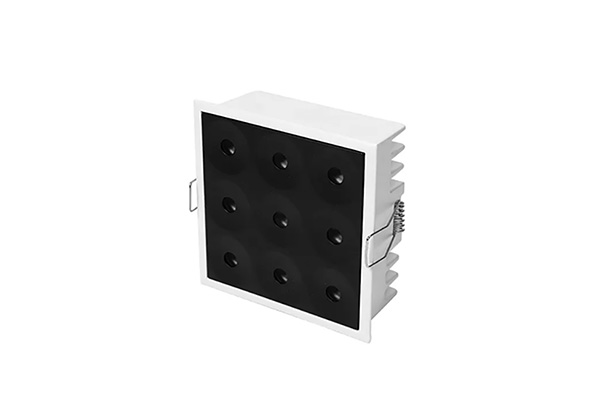

MN03008-18 18W 1260 2700K-6000K 100*100*42 95*95
