Drivers
LRS-100
Accessories-Led drives Led drives|150-158.4w|DC12V-DC48V

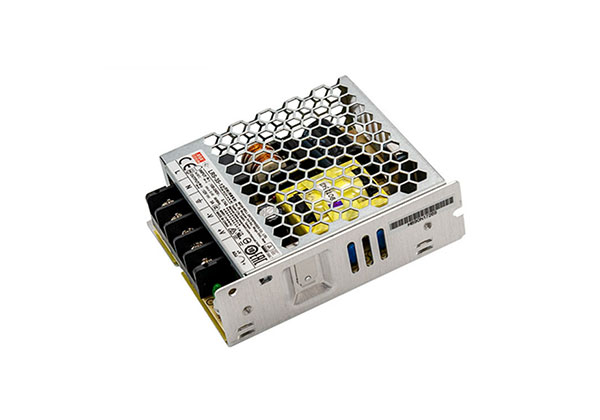

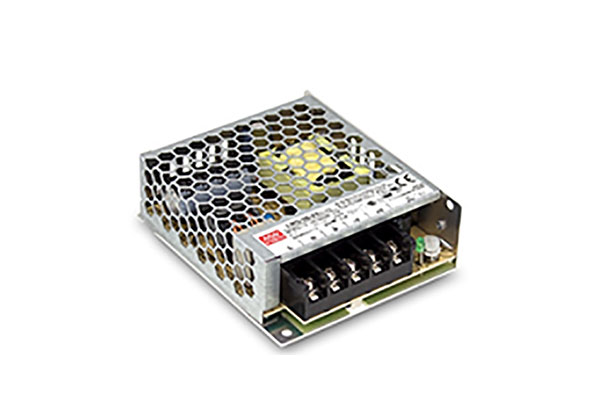

LRS-100 series is a 100w single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85 ~264vAC input, the entire series provides an output voltage line of 3 .3v, 5v, 12v, 15v , 24v, 36v and 48v. ln addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS- 100 that the whole series operates from -30℃ through 70℃ under air convection without a fan .
Online consultation
  • Product list
  • Features
  • Data sheet
  • Photometric data
CODE POWER LUMAN CCT DIMENSION CUTOUT
LRS-100-3.3 66W AC85~264V DC3.3V 129*97*30 IP20
LRS-100-5 90W AC85~264V DC5V 129*97*30 IP20
LRS-100-12 102W AC85~264V DC12V 129*97*30 IP20
LRS-100-15 105W AC85~264V DC15V 129*97*30 IP20
LRS-100-24 108W AC85~264V DC24V 129*97*30 IP20
LRS-100-36 100.8W AC85~264V DC36V 129*97*30 IP20
LRS-100-48 110.4W AC85~264V DC48V 129*97*30 IP20
