RD05006-Round-SHENZHEN VIVISOMALED CO., LIMITED

RD05006
Downlights|Recessed mounted spotlight|10-60w|Round shape|Anti-Glare

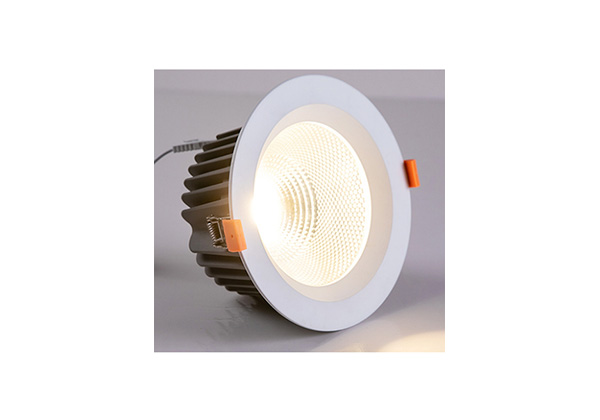

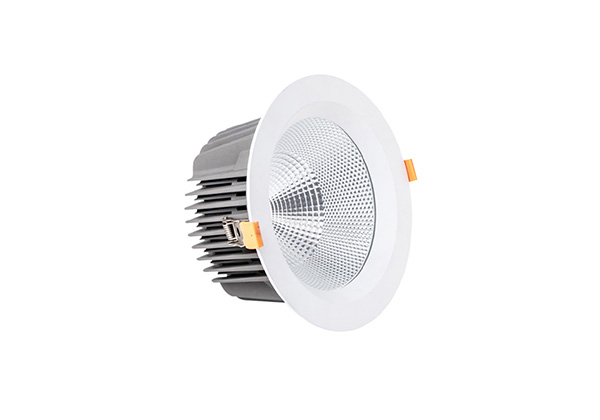

VIVISOMALED RD05006 Series is an anti-glare downlight fixture with a deep white frame, the UGR rate is very low. and the light source is with Bridgelux or Osram COB chips, providing high lumens out up to 100-120lm/W, matching with the top grade control gear like LiFud, Osram, and Philips, a lifetime of up to 50000Hrs, widely used for commercial lighting.

Online consultation

Product list
Features
Data sheet
Photometric data

CODE	POWER	LUMEN	CCT	DIMENSION	CUTOUT
RD05006-10	10W	850	2700K-6000K	Φ96*60	Φ75-80
RD05006-12	12W	1020	2700K-6000K	Φ115*70	Φ95-100
RD05006-15	15W	1275	2700K-6000K	Φ115*70	Φ95-100
RD05006-20	20W	1700	2700K-6000K	Φ140*115	Φ115-125
RD05006-25	25W	2125	2700K-6000K	Φ165*90	Φ145-150
RD05006-30	30W	2550	2700K-6000K	Φ165*90	Φ145-150
RD05006-35	35W	2975	2700K-6000K	Φ195*100	Φ165-180
RD05006-40	40W	3400	2700K-6000K	Φ195*100	Φ165-180
RD05006-45	45W	3825	2700K-6000K	Φ230*100	Φ195-220
RD05006-50	50W	4250	2700K-6000K	Φ230*100	Φ195-220
RD05006-60	60W	5100	2700K-6000K	Φ230*100	Φ195-220
